Press Box

$25.00

Category:

Product Description

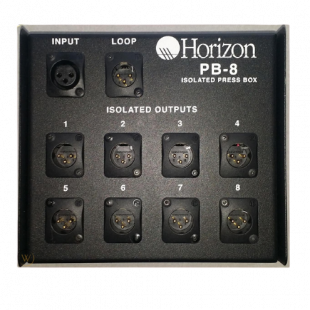

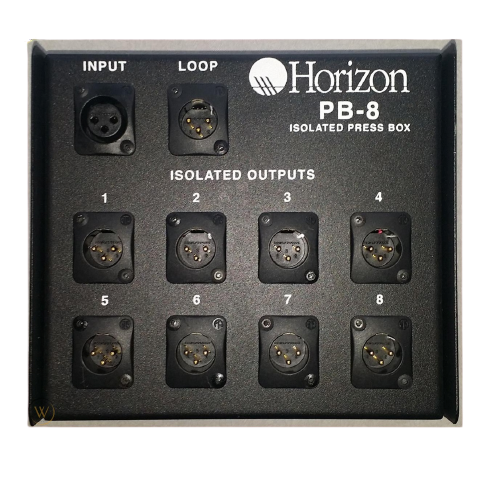

The RapcoHorizon PB-8 press box is perfect for press conferences or any situation requiring a single mic signal to be “split” multiple times.  Its features include a rugged steel box, a single XLR female mic level source input, a “loop” output (to go to a mixing console to interface with an external phantom power supply, or to “daisy chain” this unit to a second PB-8 for additional isolated outputs), and eight discrete isolated XLR male outputs.  Due to the D.C. blocking characteristics of a transformer, the isolated outputs will not pass phantom power.  The connectors are recessed to resist damage.

Production Specifications

  • Approximate size: 6 7/8″(w) x 7 5/8″(h) x 3″(d)
  • (1) XLRF Female panel mount
  • (9) XLRM Male panel mount
  • (8) HSIT Transformer
